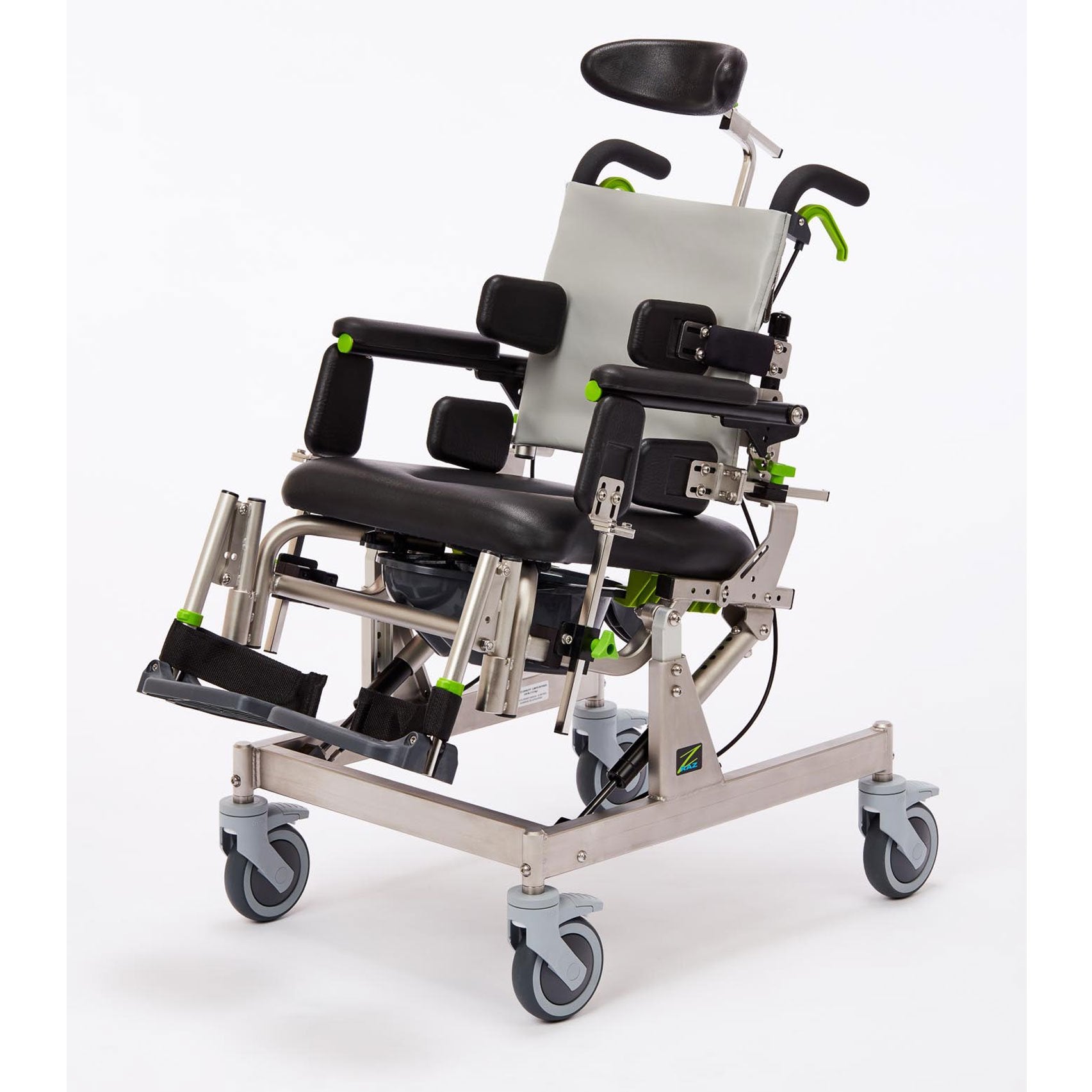

RAZ-CAT Compact Shower Commode - Standard Base Frame

The Raz-CAT has all of the features of our Raz-AT but in a more compact size. For pediatrics, adolescents or smaller adults, the Raz-CAT provides a fit that is better suited to physically smaller clients.

Features:

• The base and seat frames retain the 18” width of the Raz-AT so that the chair can still be positioned over a toilet.
• The base frame has been shorted by 3”, which makes the chair more maneuverable.
• The seat frame depth has been reduced and a depth-adjustable back offers depths from 12” to 15” (to front of frame) or up to 17” with the front of the seat overhanging the seat frame.
• The standard seat has an elongated aperture that works with seat depths from 12” to 15”.
• The depth-adjustable back provides growth capability, an essential component for pediatrics.
• Back frames can be ordered in widths 14”, 16” and 18”.
• Available back heights are 15” and 18”.
• ALSO available in RAZ-CAT wide base frame

All accessories that fit the Raz-AT can be ordered on the Raz-CAT.

Specifications:

• WEIGHT CAPACITY 250 lbs (115 kg)
• FRAME WIDTH (seat and Back frame) 18" (46 cm)
• BACK FRAME WIDTHS 14" (35 cm), 16" (40 cm), or 18" (46 cm)
• OVERALL WIDTH (with standard armpad) 21.75" (55 cm), 23" (58 cm) with 18" (46 cm) wide Back frame SEAT WIDTH (commode seat) 18" (46 cm)
• BACK HEIGHTS (top of seat to top of upholstery) 15" or 18" (38 cm or 46 cm)
• RECLINING BACKS (top of seat to top of upholstery) 15" or 18" (38 cm or 46 cm)
• SEAT DEPTH (front of back post to front of seat) 11" – 16" (28 cm – 40 cm)
• OVERALL LENGTH WHEN UPRIGHT 32" (81 cm)
• CLEARANCE HEIGHT UNDER SEAT 16.75", 17.75", 18.75", 19.75", 20.75" (42.5, 45, 47.5, 50, 53 cm) with pan brackets 17.5", 18.5", 19.5", 20.5", 21.5" (44.5, 47, 49.5, 52, 54.5 cm) without pan brackets
• ARMREST HEIGHT ABOVE SEAT (20” Adjusta-Back) 15" (38 cm) High Back: 5.5" – 8" in ½" increments (14 – 20 cm) 18" (46 cm) High Back: 6.5" – 9" in ½" increments (16.5 - 23 cm)
• SEAT-TO-FLOOR HEIGHT 21.5" – 25.5" in 1" increments (55 – 65 cm)
• PRODUCT WEIGHT 55 lbs (25 kg)
• FRAME AND HARDWARE MATERIAL Stainless Steel (Lifetime warranty against corrosion)
