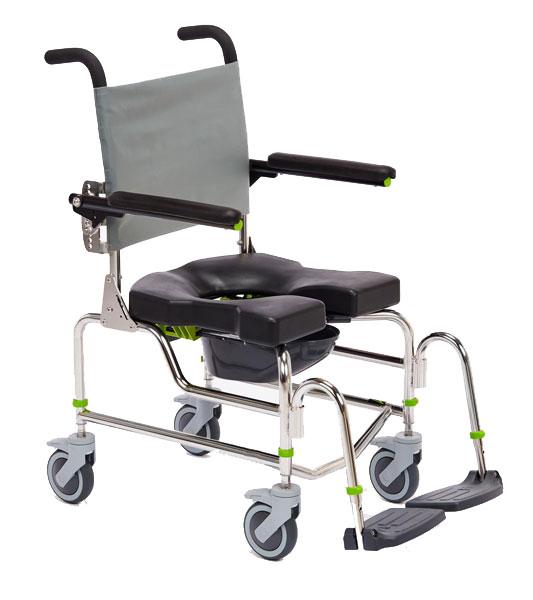

The Raz-AP mobile shower commode chair comes standard with 4” of height adjustment, an adjustable-tension fabric backrest, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame is designed for easy side and front access by the user or attendant.

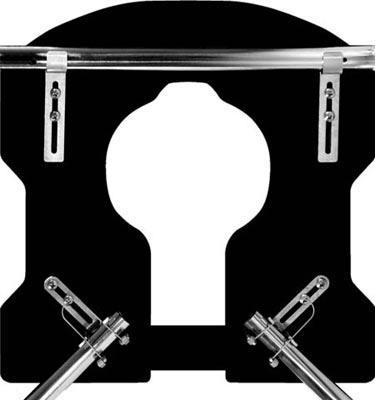

Only Raz offers the Ischial & Pelvic Alignment System (IPAS), which allows the commode seat aperture to be comfortably centered around the ischial tuberosities for clients with a posterior or anterior rotated pelvis. With so many adjustments and options available, the Raz-AP is a true prescriber-friendly, mobile shower chair.
Features:
- Stainless steel frame & hardware
- Adjustable frame height

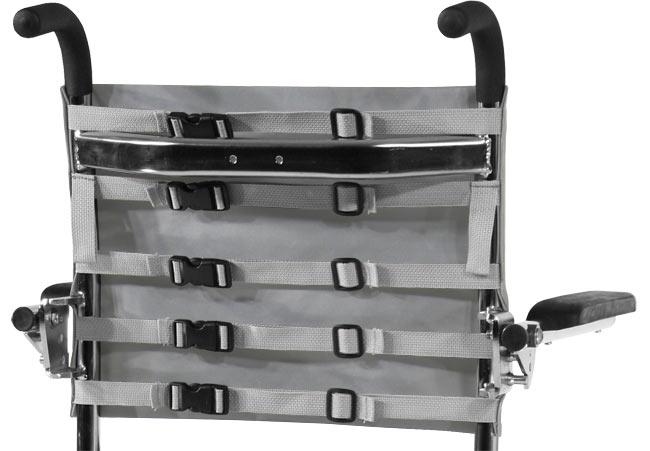

- Adjustable tension fabric backrest
- Flip-up armrests
- Commode Pan
- Dual-locking casters
RAZ AP / SP Specifications
| SPECIFICATION | RAZ-AP | RAZ - SP |
| SEAT WIDTH | 18" | 18" |
| SEAT DEPTH | 16" or 19" | 16" or 19" |
| SEAT ADJUSTMENT | Up to 2" (fore/aft) | Up to 2" (fore/aft) |
| SEAT HEIGHT (front seat to floor) | 19.5" - 23.5" | 19.5"- 21.5", 23.5"(22"whl) 19.5" - 22.5" (24" whl) |
| CLEARANCE HEIGHT (under seat) | 14.8" - 18.8" w/ pan bracket. 16" - 20" w/o pan bracket | 14.8" - 18.8" w/ pan bracket and 22" whl 16" - 20" w/o pan bracket and 22" whl 14.8" - 17.8" w/ pan bracket and 24" whl 16" - 19" w/o pan bracket and 24" whl. |
| BACK TYPE w/ Adj. Ht/Angle, Flip-Up Armrests | Adjusta-Back 17" back ht.(Z510C) 20" back ht.(Z515C) | Adjusta-Back 17" back ht.(Z510C)20" back ht.(Z515C) |
| ARMREST HEIGHT | 7" - 9.5" (Z510C) 8" - 10.5" (Z515C) | 7" - 9.5" (Z510C) 8" - 10.5" (Z515C) |
| WIDTH BETWEEN ARMRESTS PADS | 18.5" | 18.5" |
| LATERAL SUPPORT(adjustment range) | 1.2" - 2.2" offset 2" vertical 1" fore/aft ? 5° pad angle | 1.2" - 2.5" offset 2" vertical 1" fore/aft +- 5° pad angle |
| FOOTREST ADJUSTMENT (from seat to footplate) | 16"- 20.5"(Z705) 18"-22.5" (Z707) |
16"- 20.5" (Z705) 18"-22.5" (Z707) |
| CASTER TYPE AND SIZE | Four dual-locking 5" casters | Two dual-locking 5" front casters |
| REAR WHEEL SIZE (treaded TPE tires) | N/A - See Above | 22" standard 24" optional |
| OVERALL WIDTH | 23" std. arm pad 25.5" (Z715) | 26" (outside hand rim) |
| OVERALL LENGTH w/ FOOTRESTS | 40.2" | 40.3" - 43.8" (22" wheel) 41.1" - 44.6" (24" wheel) |
| OVERALL LENGTH w/o FOOTRESTS | 28.6" | 28.7" - 32.2" (22" wheel) 29.5" - 33" (24"wheel) |
| WEIGHT CAPACITY | 300lbs | 300lbs |
| PRODUCT WEIGHT | 38lbs | 47lbs |
| FRAME MATERIAL & HARDWARE | Stainless steel | Stainless steel |
